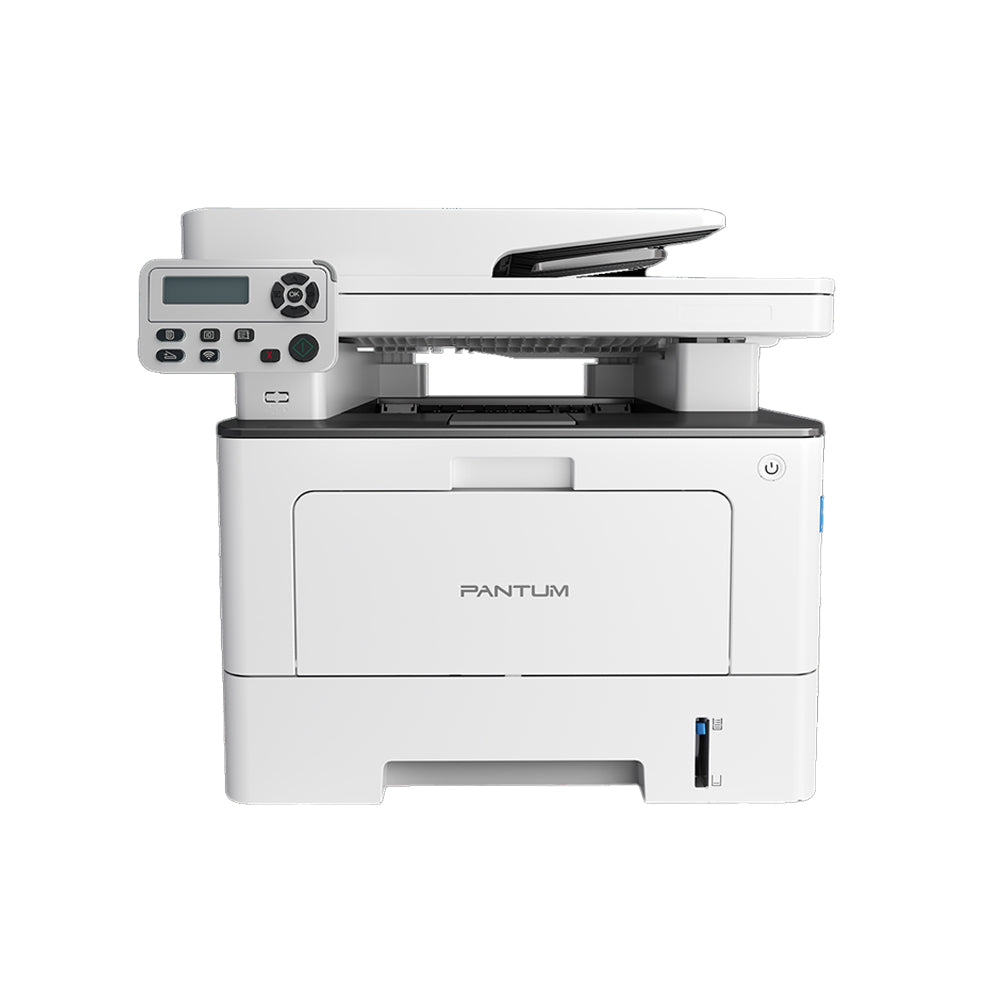

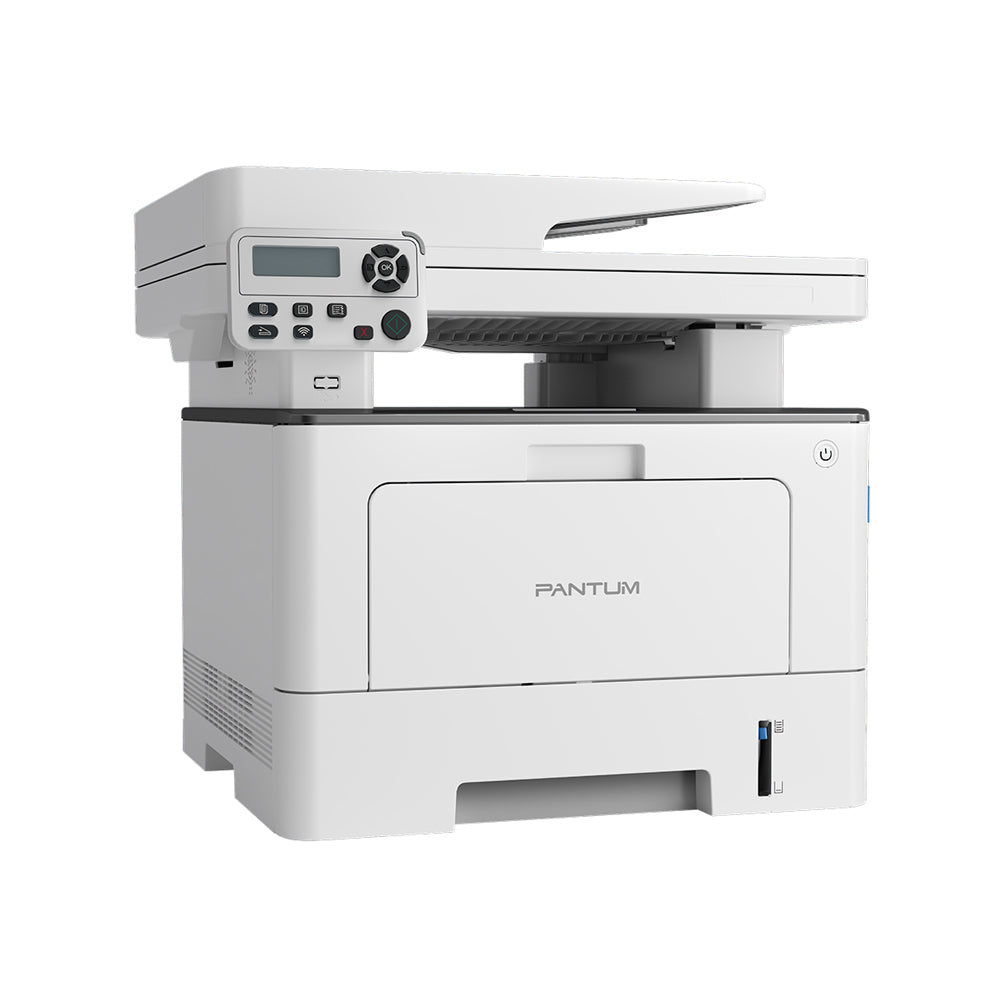

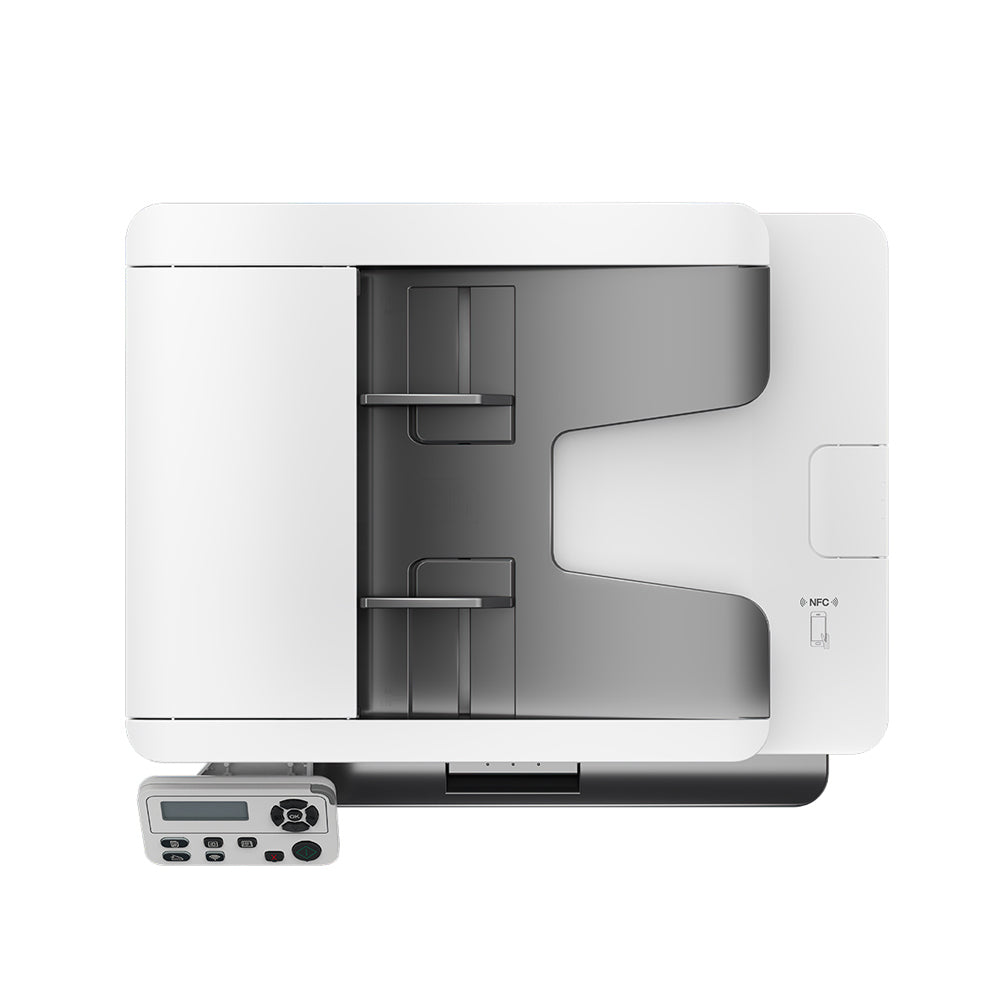

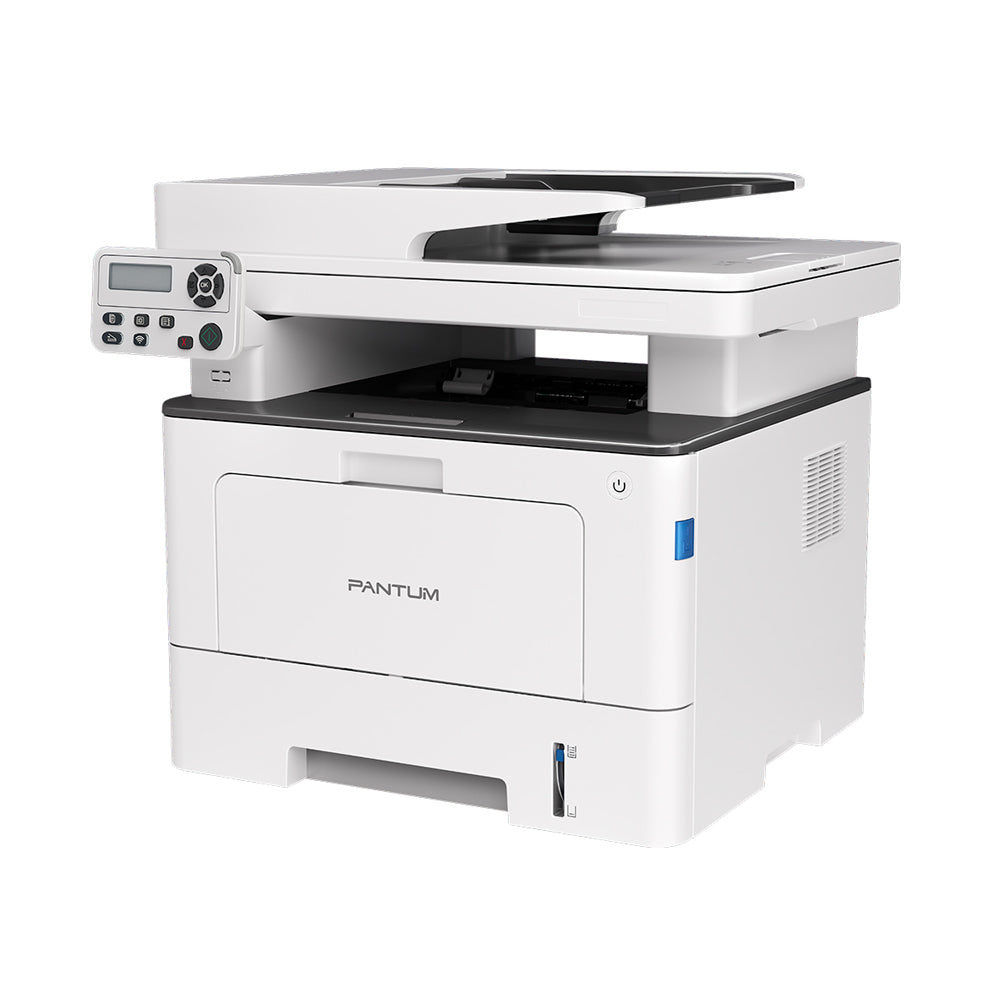

BM5100ADW Mono laser multifunction printer

Printing speed：40ppm

Connection method：USB+NET+WIFI

Basic function：Print、Copy、Scan

Special function：

-One step driver installation

-Automatic duplex printing

-2*550 pages optional paper tray

-Optional 15,000 pages toner cartridge

-One pass two side scanning

-Dual-band WiFi(2.4G/5G) support

MODEL

Model：BM5100ADW

PRINT

Printing speed: 40ppm(A4)/42ppm(Letter)

First Print out time: ≤6.9s

Recommended monthly page volume: 750 to 4,000 pages

Monthly Duty Cycle(1): 100,000 Pages

Print language: PCL5e、PCL6、PS

Processor speed: 1.2 GHz

Memory: 512 MB

Control panel: 2line LCD

Duplex print speed: 20spm（A4）/21spm（Letter）

Auto Duplex print: Yes

NFC function: Yes

Other printing functions: Booklet printing; Support AirPrint, Mopria, mobile APP(iOS APP/Android APP)

Duplex print support paper size: A4\Letter\Legal\Folio\Oficio

COPY

Copy speed: 40ppm(A4) ； 42ppm(Letter)

First copy out time: flatbed：less than 10s ；ADF：less than 11s

Maximum copy pages: 99

Copy reduce / enlarge settings: 25%~400%

Copy Special Features: ID copy, Receipt copy, N-up copy, Clone copy、poster copy、collated copy、watermark copy

SCAN

Scan type: Flatbed+DADF

ADF capacity: 50 pages

Scan Destinations: Scan to PC、E-mail、FTP、SMB、thumb drive、 APP（iOS/Android/iPad OS）

Auto duplex scan: Yes

Scan Speed: 24 ppm(A4)/48 ipm(A4) ；25 ppm(Letter)/50 ipm(Letter)

Maximum scan size: Flatbed: 216×297 mm ；ADF: 216×356 mm

Color scanning: Yes

PAPER HANDLING

Paper input tray: 250 Pages

Optional input paper tray: PT-511H，550 Pages(Maximum:2)

Multipurpose tray: 60 Pages

Maximum paper input capacity: 1410 Pages

Paper output tray: 150 Pages

Media weight: input tray：60-120g/㎡ Multipurpose tray：60-200g/㎡ Optional tray：60-120g/㎡

Media sizes: A4, A5, JIS B5, IS0 B5 , A6, Letter, Legal,Executive, Folio, Oficio, Statement, Japanese Postcard, Monarch Env, DL Env, C5 Env, C6 Env, No.10 Env, ZL, Big 16K, Big 32K, 16K, 32K, B6， Yougata4, Postcard, Younaga3, Nagagata3, Yougata2

Media types: Paper(plain, thick, thin,recycled),Transparency, Cardstock, Label, Envelope(4)

OTHER

Product Dimensions (w*d*h): 415*365*370 mm

Product Weight(with cartridge): 12.5kg

Package size(W×D×H): 559*444*488 mm

Package Weight(with cartridge): 14.7kg

Operating temperature range: Recommended temperature: 10～32℃ Humidity range：20% ～ 80%

Input voltage: 110V：AC100-127V, 50/60Hz,14A 220V：AC220-240V, 50/60Hz，7A

Noise: Ready≤30dB(A) Print≤54dB(A) scan≤54dB(A) copy≤57dB(A)

Power consumption: Print average：≤650W Ready：≤60W； Sleep：≤1W

Interface: High-speed USB 2.0; IEEE 802.3 10/100/1000Base-Tx; WiFi(2.4G/5G):IEEE 802.11a/b/g/n

Operating system compatibility: Microsoft Windows： Server2008/Server2012/Server2016/XP/Vista/Win7 /Win8/Win8.1/Win10/Win11（32/64 Bit）; Mac OS：10.8/10.9/10.10/10.11/10.12/10.13/10.14/10.15/11/12 ; Linux：Ubuntu 14.04/16.04/18.04 /Debian 10.0/Centos 7（32/64 Bit）；Astra Linux Special Edition V1.6/Redhat 8.0/ Centos 8.2(64 Bit)
